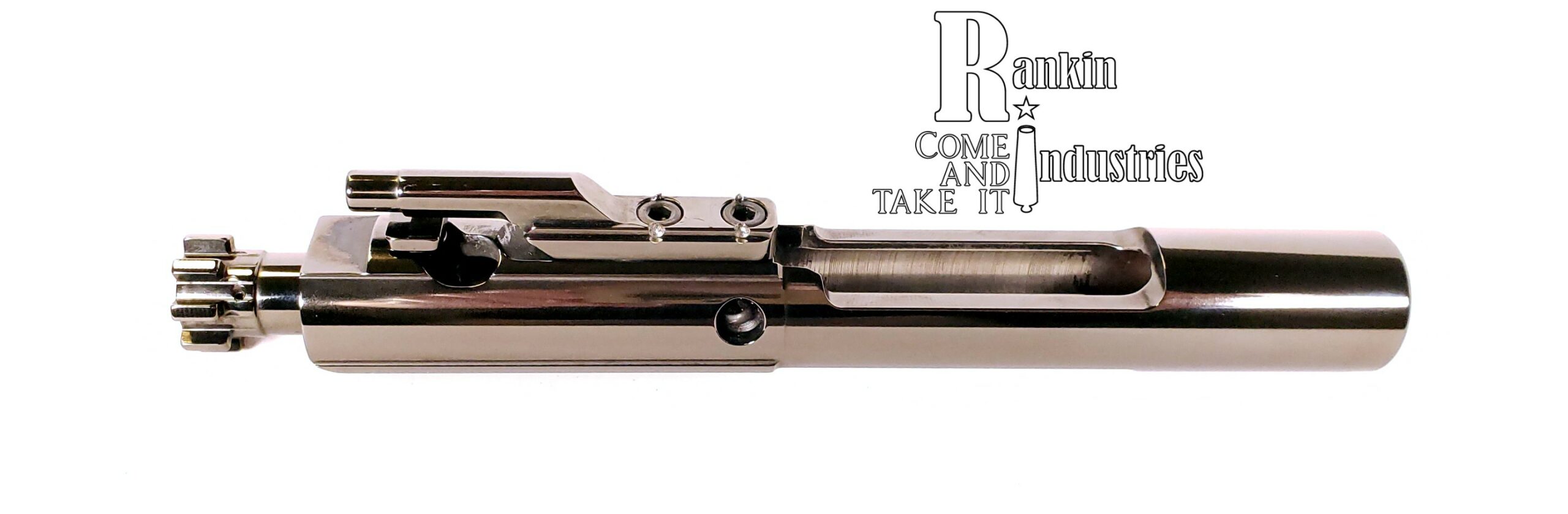

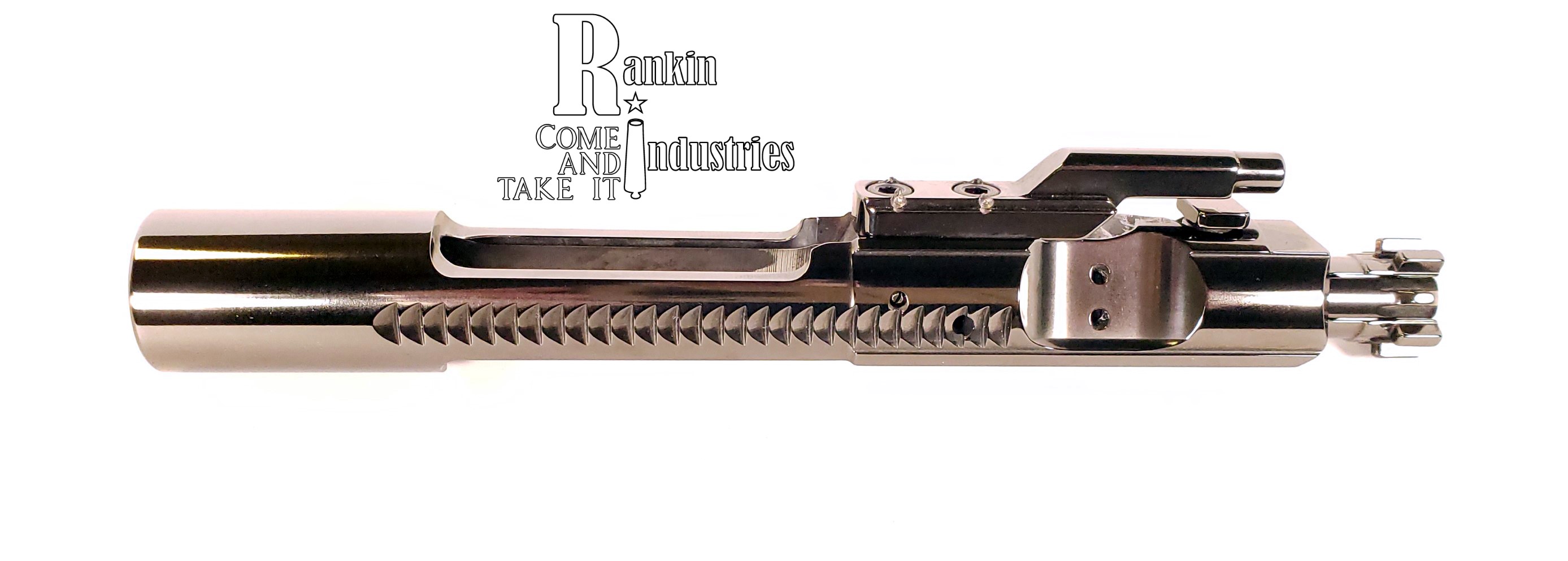

Rankin Industries SP4 Coated Bolt Carrier Group

Product Description

Rankin Industries SP4 Coated Bolt Carrier Group Mil Spec M-16 AR-15 5.56 or .300 Blackout

“No Lubrication Needed”

Rankin Industries SP4 Coated Bolt Carrier Group Mil Spec M-16 AR-15 5.56 full auto version can be used in semi-auto rifles and pistols.  This is for full auto or semi auto AR15, M16, and M4 rifles and pistols.   machined from Mil-Spec 8620 aircraft quality steel with shrouded firing pin and Mil-Spec chrome lined interior. The SP4 coated bolt carrier includes the proper chrome lined and heat treated 4140 billet gas key. The gas key is secured to the carrier with Grade 8 fasteners per Mil-Specs.  It is properly staked.  The bolt assembly is CNC machined from 9310 steel that is heat treated, shot peened, and magnetic particle inspected for increased strength and reliability per Mil-Spec.  The SP4 Coated bolt carrier includes SP4 coated 4140 billet extractor that is heat treated and shot peened, with spring and viton O-ring.

Rankin Industries SP4 Coated Bolt Carrier Group Mil Spec M-16 AR-15 5.56 is designed to reduce the friction coefficient.   This lowers the operating temperatures and increases the overall performance and the Bolt Carrier Group’s life.

“Lifetime Warranty”

Backed by a lifetime guarantee, you can be confident that this SP4 coated BCG will increase lubricity and wear resistance.  This bolt carrier will provide a smoother recoil, improved consistency, faster cyclic rate and reduce carbon fouling.

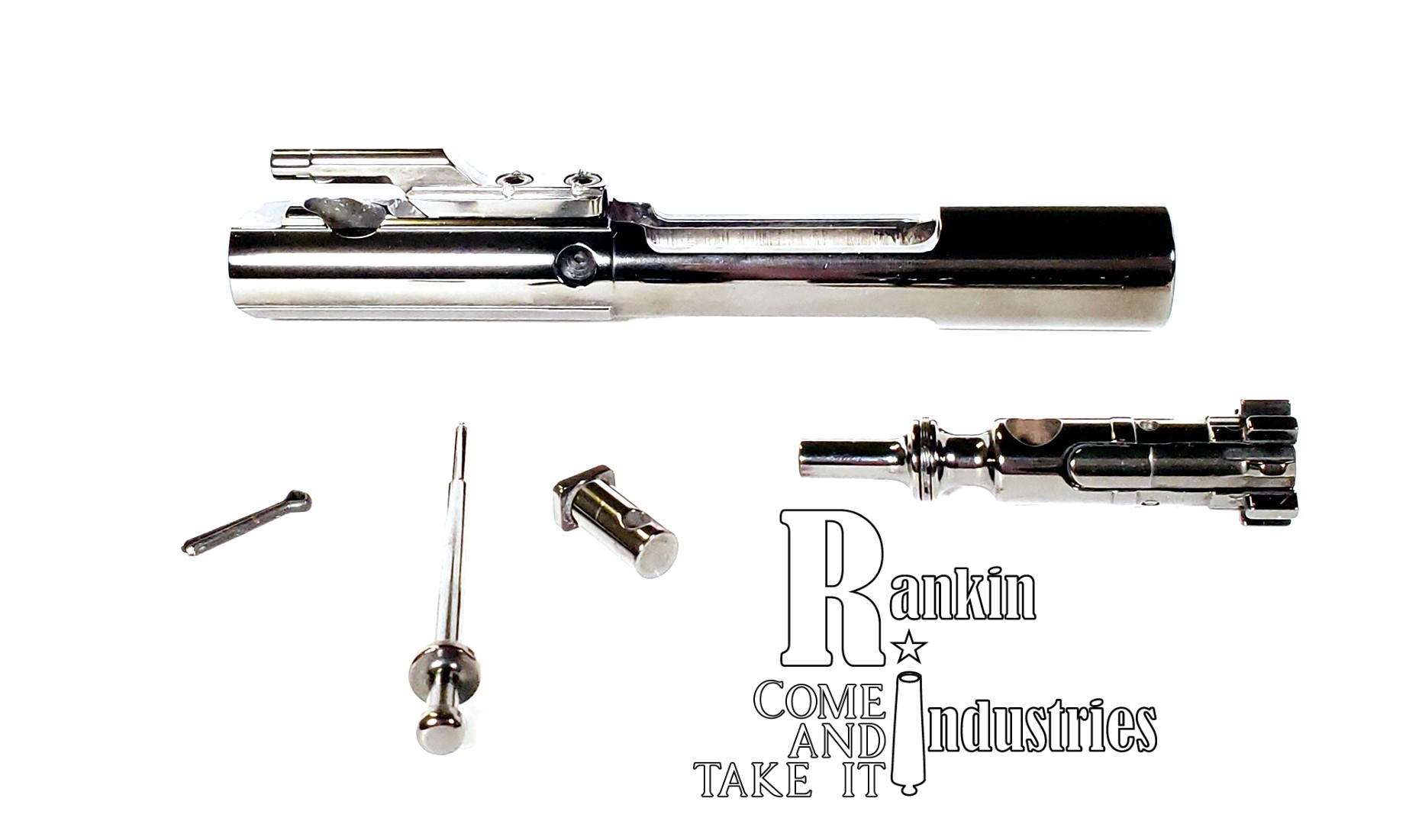

SP4 Coating is on the following parts: Bolt Carrier, Carrier Key, Cam Pin, Firing Pin, Bolt, Extractor

HPT (High Pressure Tested) and MPI (Magnetic Particle Inspected).

Rankin Industries Complete Mil-Spec M-16 Bolt Carrier with Bolt Assembly HPT/MPI Tested:

• Mil-Spec BCG Machined from 8620 Aircraft Quality Steel and heat treated to 60 RC
• Mil-Spec Chrome Lined Carrier Interior
• Mil- Spec Chrome Lined Gas Key from 4140 Steel
• Grade 8 Screws and torqued to 58 inch pounds per Mil Spec.
• Properly Staked
• 9310 Steel Bolt w/ Spring and Ejector, Heat Treated, Shot Peened, MPI
• 4140 Billet Extractor w/ Spring and viton O-ring, Heat Treated, Shot Peened
• Mil-Spec Firing Pin
• Mil-Spec Cam Pin
• Full Auto Carrier is Backward compatible with all semi-auto rifles
• Full Auto M-16 5.56 BCG Weight – 11.40 oz.
• SP4 is a Thin Film that has a thickness between 2 and 3 microns
• Hardness is an amazing 3000 on the Vickers scale
• Friction Coefficient is an incredible  .02
• SP4 is also the most flexible coating on the market.
• SP4 is #1 in Hardness; #1 in Low Coefficient of Friction; #1 in Flexibility and Elasticity

Rankin Industries Complete Mil-Spec M-16 Bolt Carrier with Bolt Assembly HPT/MPI Tested:

• Mil-Spec BCG Machined from 8620 Aircraft Quality Steel and heat treated to 60 RC
• Mil-Spec Chrome Lined Carrier Interior
• Mil- Spec Chrome Lined Gas Key from 4140 Steel
• Grade 8 Screws and torqued to 58 inch pounds per Mil Spec.
• Properly Staked.
• 9310 Steel Bolt w/ Spring and Ejector, Heat Treated, Shot Peened, MPI
• 4140 Billet Extractor w/ Spring and viton O-ring, Heat Treated, Shot Peened
• Mil-Spec Firing Pin
• Mil-Spec Cam Pin
• Full Auto Carrier is Backward compatible with all semi-auto rifles
• Full Auto M-16 5.56 BCG Weight – 11.40 oz.
• SP4 is a Thin Film that has a thickness between 2 and 3 microns
• Hardness is an amazing 3000 on the Vickers scale
• Friction Coefficient is an incredible  .02
• SP4 is also the most flexible coating on the market.
• SP4 is #1 in Hardness; #1 in Low Coefficient of Friction; #1 in Flexibility and Elasticity
